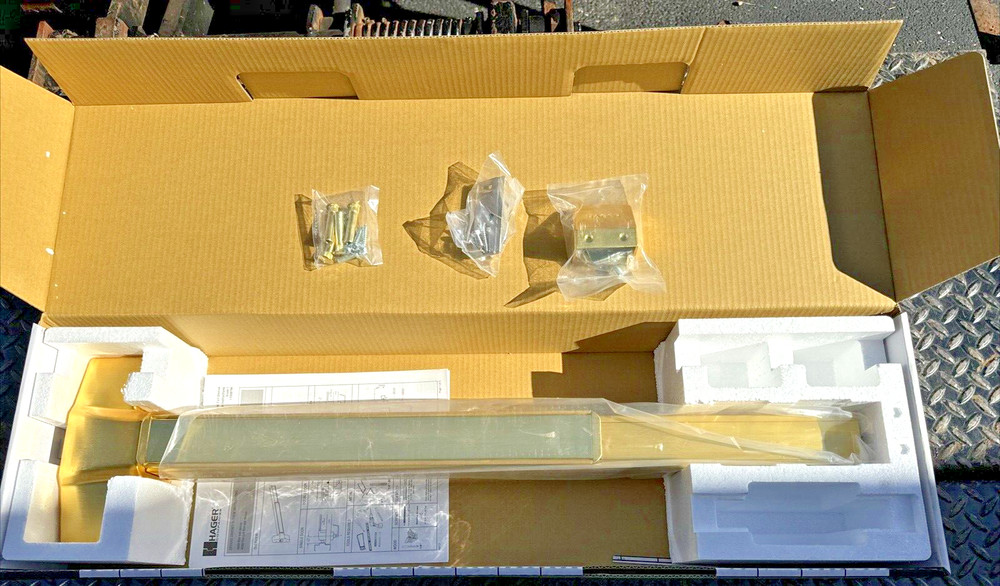

Hager 4501 Rim Device 36 in. Door US4 158107 (REV 2) NEW SATIN/BRUSHED BRASS
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Hager |
| Model | 158107 |
| Material | Brass |
| Finish | Satin |
| Item Width | 36 in |
4501 RIM FR 36" US4 (REV 2).The 158107 has a US4 ( satin brass ) finish and is made for doors that are 36 inches wide.The Hager 4501 Rim Device 36 in. Door US32D Stock No 158202 is a fire rated Rim Device. FOR MORE INFO PLEASE VISIT HAGER WEBSITE Hager 4501 Rim Device 36 in. Door US4 Stock No 158107Trim:- Archer, August, Charles, Johnston, Joshua, Louis, Warren, William or Withnell lever with escutcheon- Pull plate trim- Rim cylinder x optional pullCovers:- Stainless steel, zincCover Tube:- AluminumEnd Caps:- Standard end cap (zinc)- OPTIONAL Flush end cap (zinc)Door Width:- 36'' (914 mm) field sizeable to 30'' (762 mm) panic-rated door and 28" (711 mm) fire-rated door- 48'' (1219 mm) field sizeable to 36'' (914 mm) panic- or fire-rated doorDoor Thickness:- 1-3/4" (44 mm) - Standard up to 3", except with night latch which is 2-1/2"Stile Width:- 5-3/8" (137 mm) - Minimum stile width required for single doors and standard 5/8" (16 mm) stop- 4-7/8'' (124 mm) - Minimum stile width required for double door x surface vertical rod with double door strike- 5-3/4" (146 mm) - Minimum stile width required for double door and 2" (51 mm) mullion- All stile widths are measured from the door edgeFasteners:- Wood and machine screws- Thru-boltsLatchbolt:- 3/4" (19 mm) throw, pullman type with automatic dead-latching, stainless steelPush Bar:- OPTIONAL Photoluminescent push bar cover availableStrikes:- Stainless steel with plated rollers - Included standard with panic devices- Solid stainless steel - Included standard with fire-rated devices- Surface applied to frame with slotted holes for easy adjustment- Double door strike for use with surface vertical rod and rim device availableFinish:(SATIN BRASS????? THIS IS FROM MFG)...PLEASE LOOK AT PIC AS I THINKING MORE LIKE BRUSHED BRASS???? YOU DECIDEDogging:- Hex key dogging standard on panic rated devices- Cylinder dogging available on panic rated devices, specify "CD" ( 3902 1-1/8" (29 mm) mortise cylinder sold separately)Projection:- 3" (76 mm) in undogged position- 2-5/8" (67 mm) in dogged positionNotes:- Recommended to be used on appropriately reinforced doors
