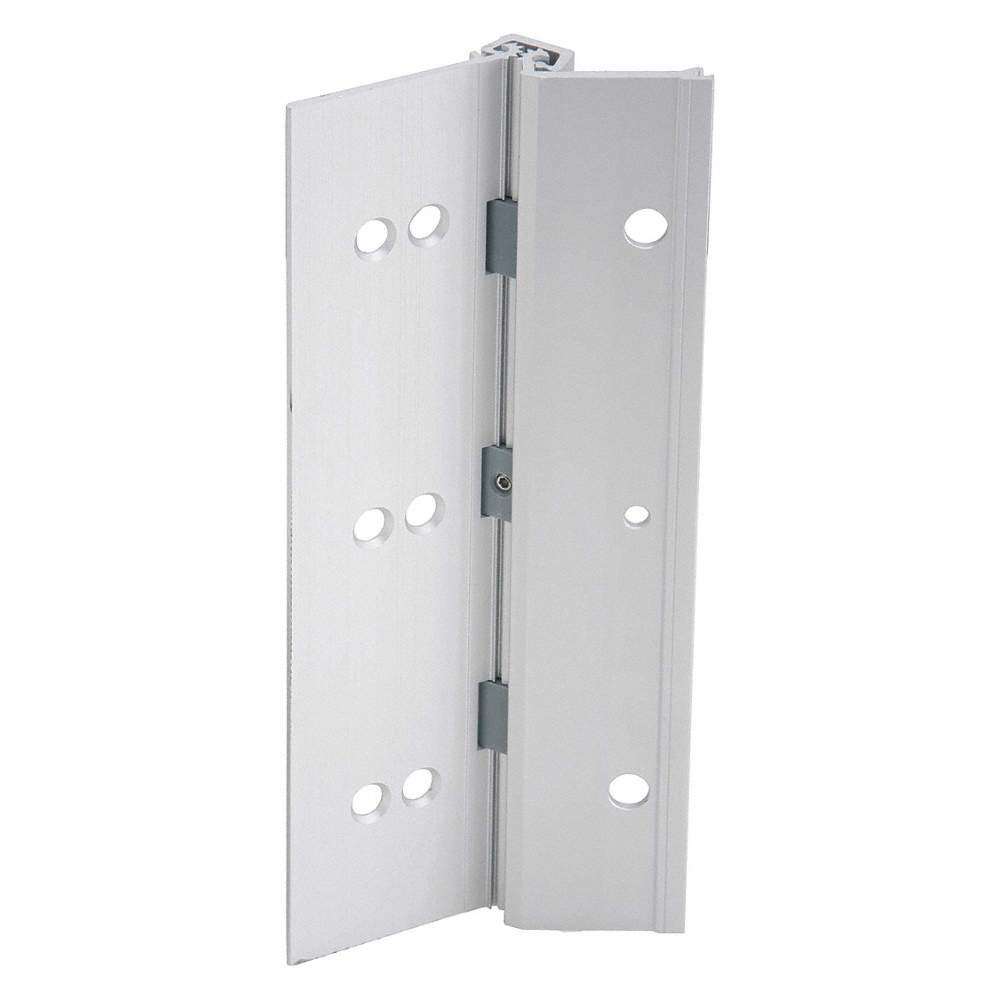

IVES 224HD US28 83IN Geared Piano HingeSteel,0.040In 32MD07

Specifications

Piano Hinge, Ligature Resistant No, Aluminum Material, 180 Degrees Range of Motion, Pewter Finish, With Holes, 600 lb Load Capacity, Non Handed Orientation, 1/2 in Overall Knuckle Height, 83 in Door Leaf Height, 83 in Frame Leaf Height, 1 15/16 in Door Leaf Width, 1 15/16 in Frame Leaf Width, 0.04 in Door Leaf Thickness, 0.04 in Frame Leaf Thickness, Length 83 in, Included Hardware, 3 in Hole Spacing, 27 Holes per Leaf, Full Mortise Mounting, ANSI 156.26 Grade 1 Standards, 2 5/8 in Overall Width Also known as a Continuous Hinge, this 83"L steel Ives piano hinge can be cut to length using an ordinary hacksaw. Includes mounting hardware.
